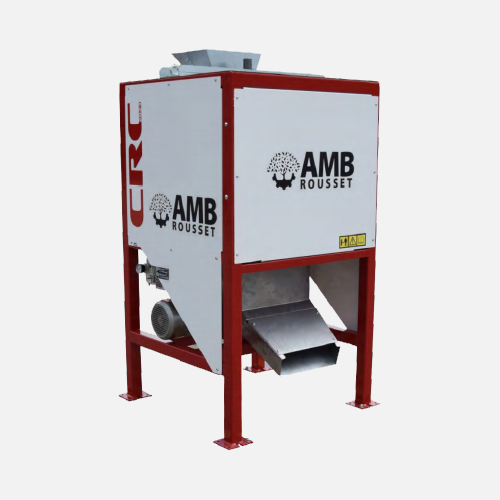

Conical Rotor Cracker

The Conical Rotor Cracker (CRC) is especially made to crack an important amount of walnuts / hazelnuts
/ almonds, previously washed, dried, sized or not.
The CRC is practical and efficient to use, and it requires no supervision. Its robust design requires very
little maintenance.
The cracking time is reduced thanks to the cracking system while guaranteeing the system robustness
and a continuous cracking process

Description

The Conical Rotor Cracker (CRC) is especially made to crack an important amount of walnuts / hazelnuts
/ almonds, previously washed, dried, sized or not.
The CRC is practical and efficient to use, and it requires no supervision. Its robust design requires very
little maintenance.
The cracking time is reduced thanks to the cracking system while guaranteeing the system robustness
and a continuous cracking process.
The cracking adjustment (depending on the fruit to crack) is dynamic, that is to say that we adjust the two
cones using a crank handle while the machine is running.
CRC is equipped with an anti-stones and discharge system not to damage the machine if stones get in.
The CRC is also equipped with a tri-phased electronic speed variator that allows to reduce the rotation
speed if needed.

Additional information

Operation

A motorized conical rotor system in rotation inside a fix cone. The distance
between the two cones is adjustable with a crank handle

Products

Walnuts / Hazelnuts / Almonds

Output

350kg/h : Walnuts (-28mm or sorting gap)
450kg/h : Hazelnuts
350kg/h : Almonds

Motorisation

2,2 kW

Transmission

Direct on the motor shaft

Chassis

Tubular mechanically welded

Features techniques

Rotation speed of the interior cone adjustable by electronic variator
Distance between cones adjustable by crank handle
Discharging system by pneumatic jacks

Security

Conforms to CE (European Certification) standards

Length

1,10 m

Width

0,90 m

Height

2,2 m

Weight

310 kg

Associated separator

SEP900* Width 400

Associated elevator

ELO or elevator ECO
