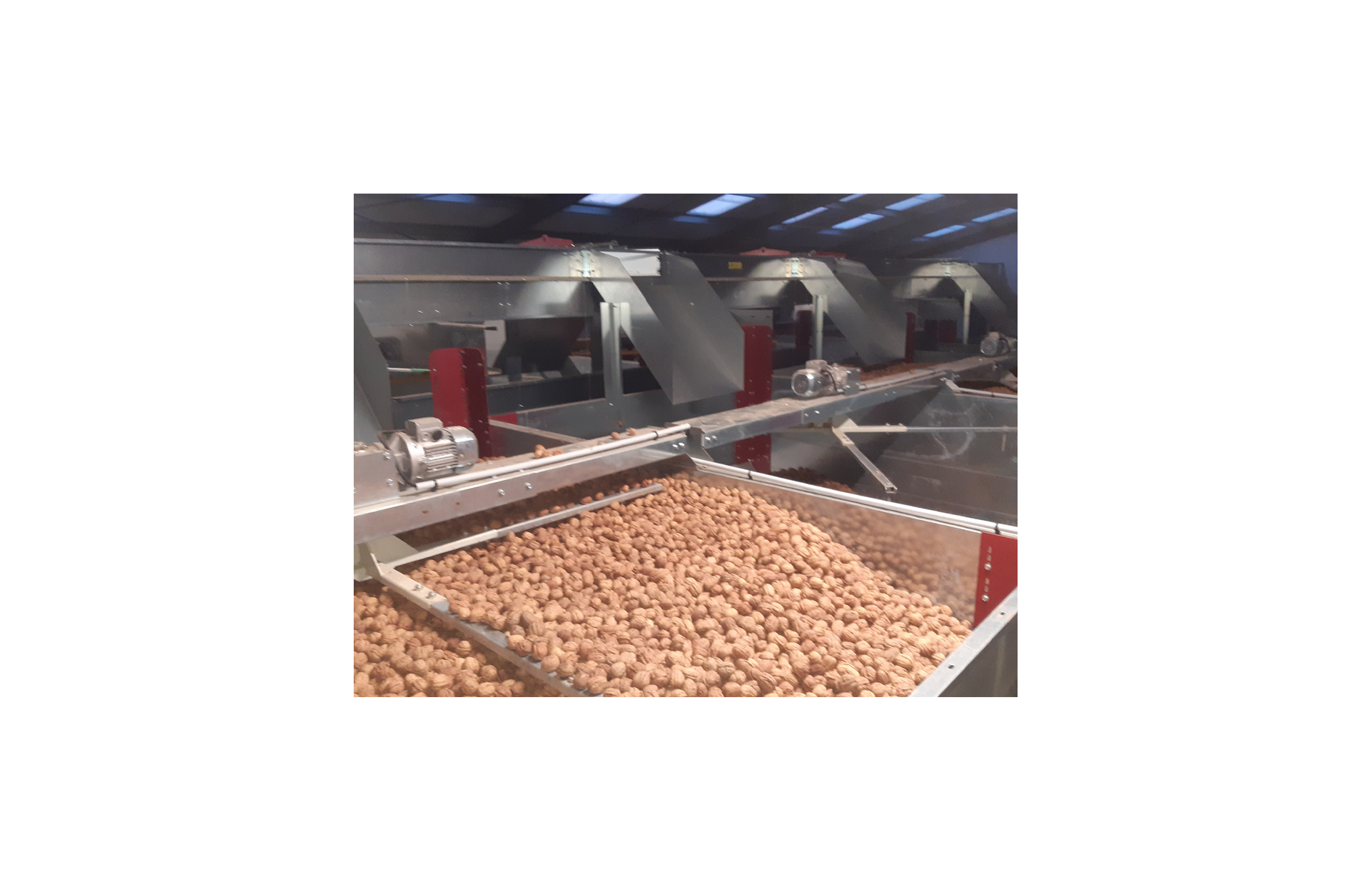

The Multi-level Dryer SAE is an economical drying system that efficiently uses air humidity and heat supplied by the generator. Nuts are pre-dried on the upper levels and finished on the lower levels, allowing higher drying temperatures (30–35°C) while ensuring uniform and controlled drying.
Crop compatibility:
Walnut Processing
Almond Processing
Hazelnut Processing

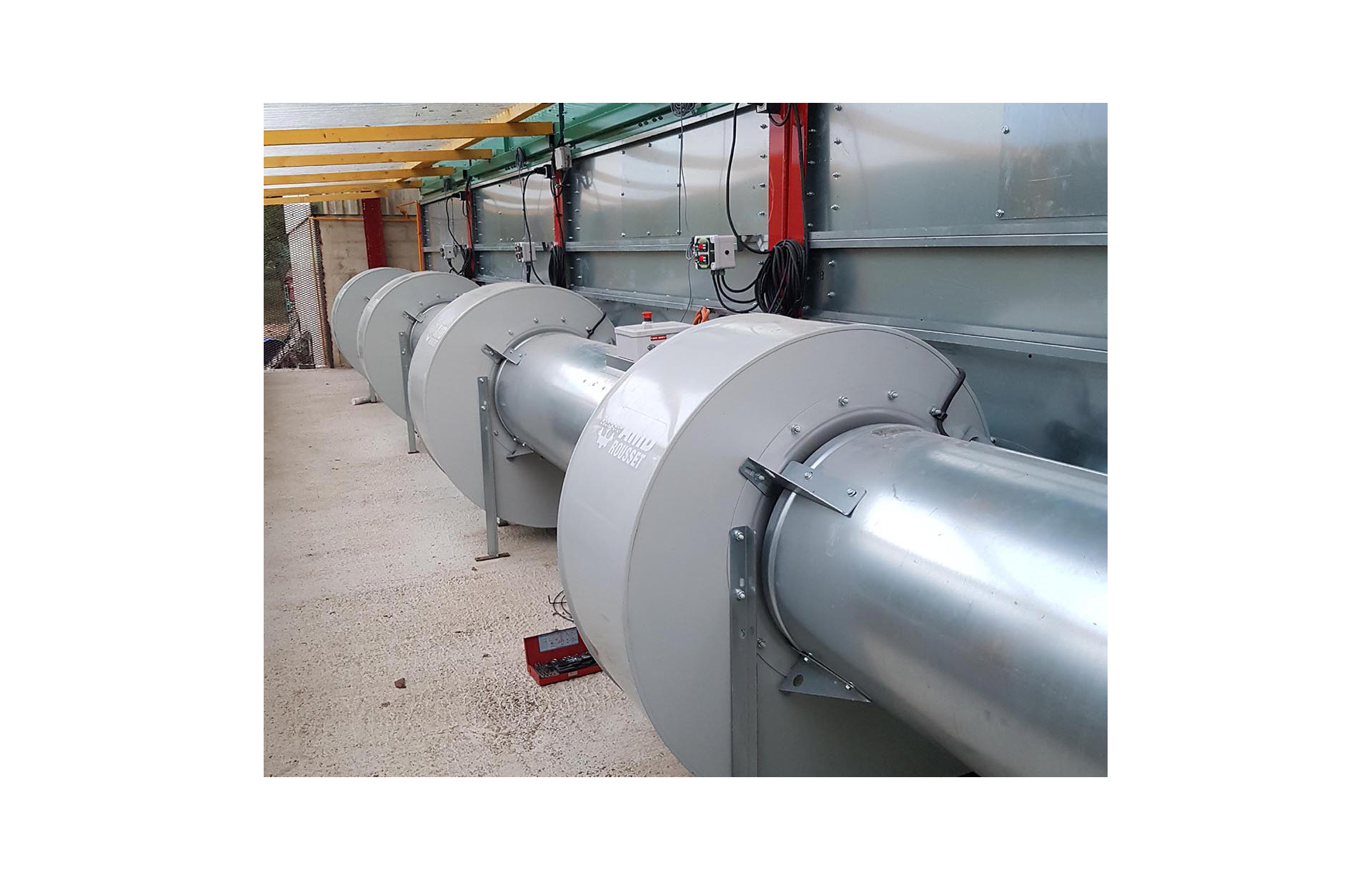

| Technical specifications | Bolted assembly of galvanized profiles and sheets. Helical or centrifugal hot air generator of different power depending on the dimensions. Vibrating floor motor power (0,71kW). |
|---|---|

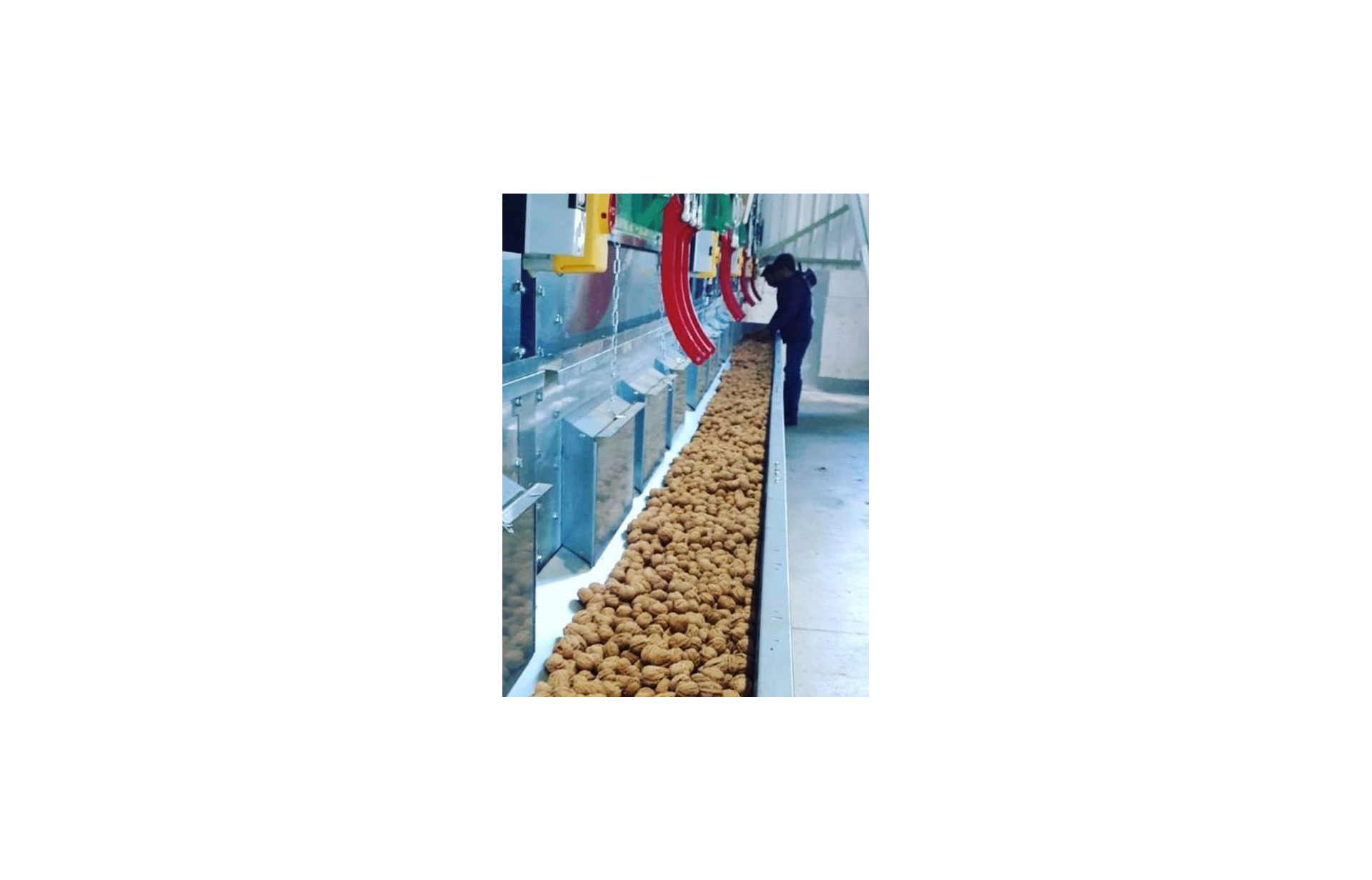

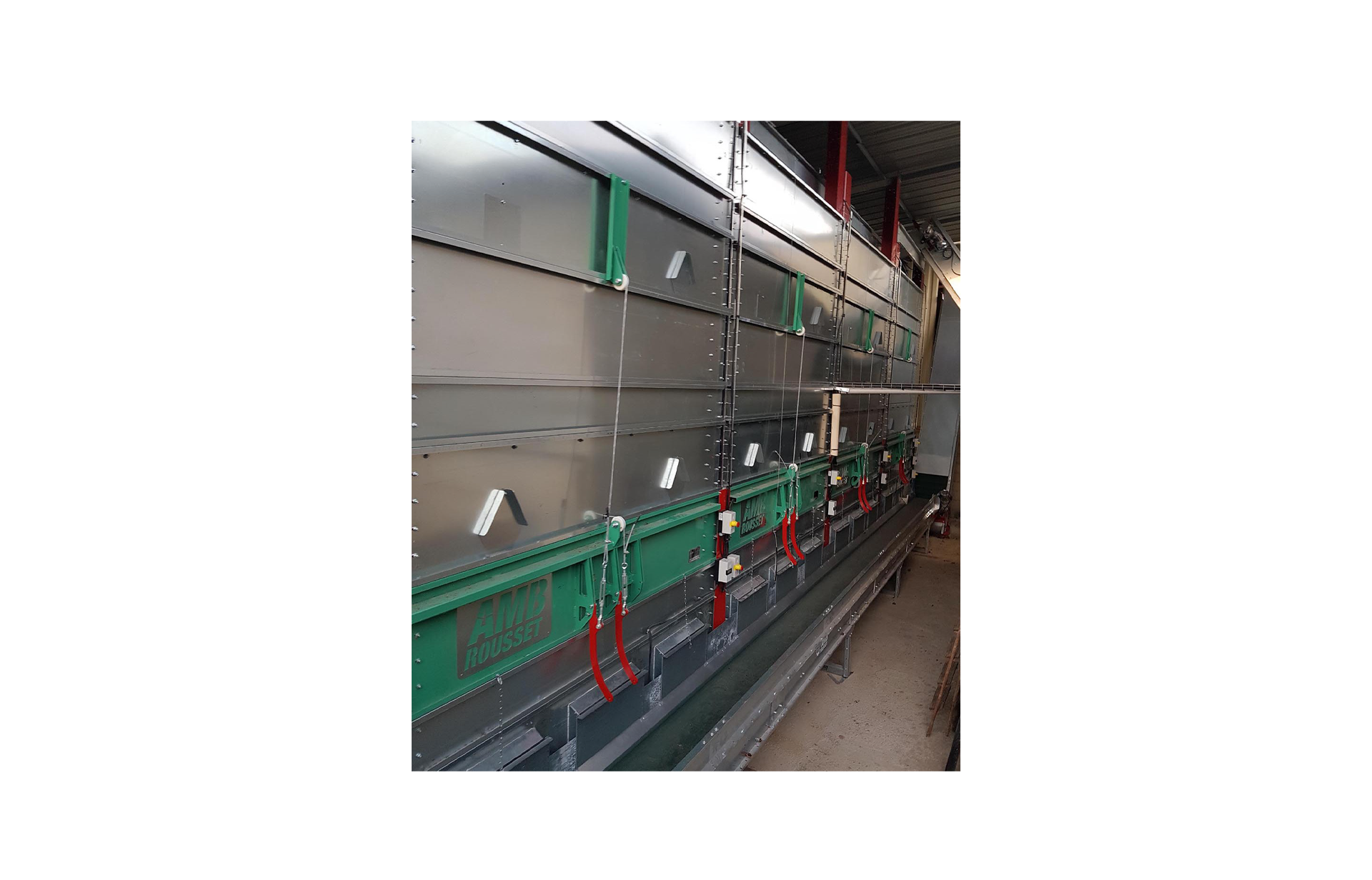

| Working | The dryer with floors is composed of a set of superimposed hatches with centralized opening. It allows to work continuously by passing nuts from the upper floor to the lower floor. |
| Weight and dimensions | Length: 2.09 m or 2.59 m Width: 2.09 m or 2.59 m Height: depending on the number of floors Weight: depending on the number of floors |
