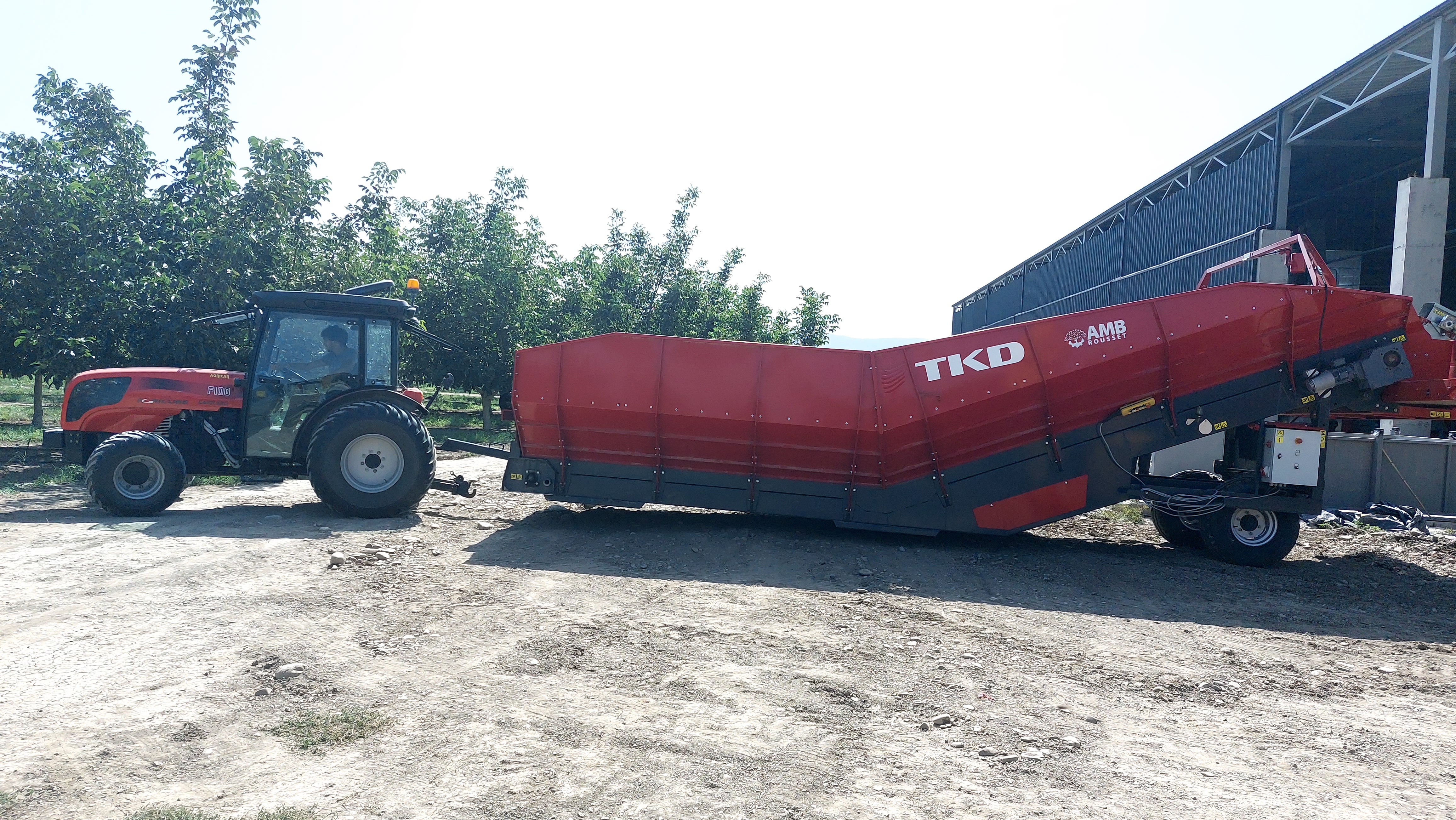

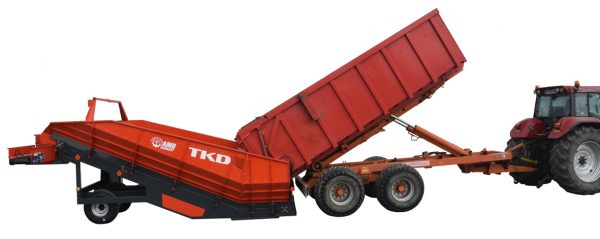

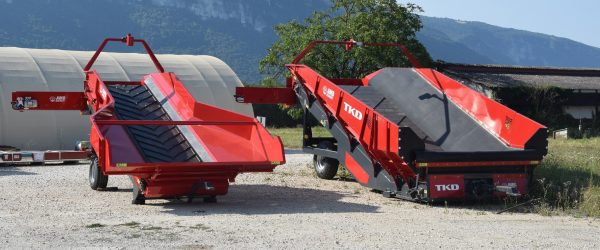

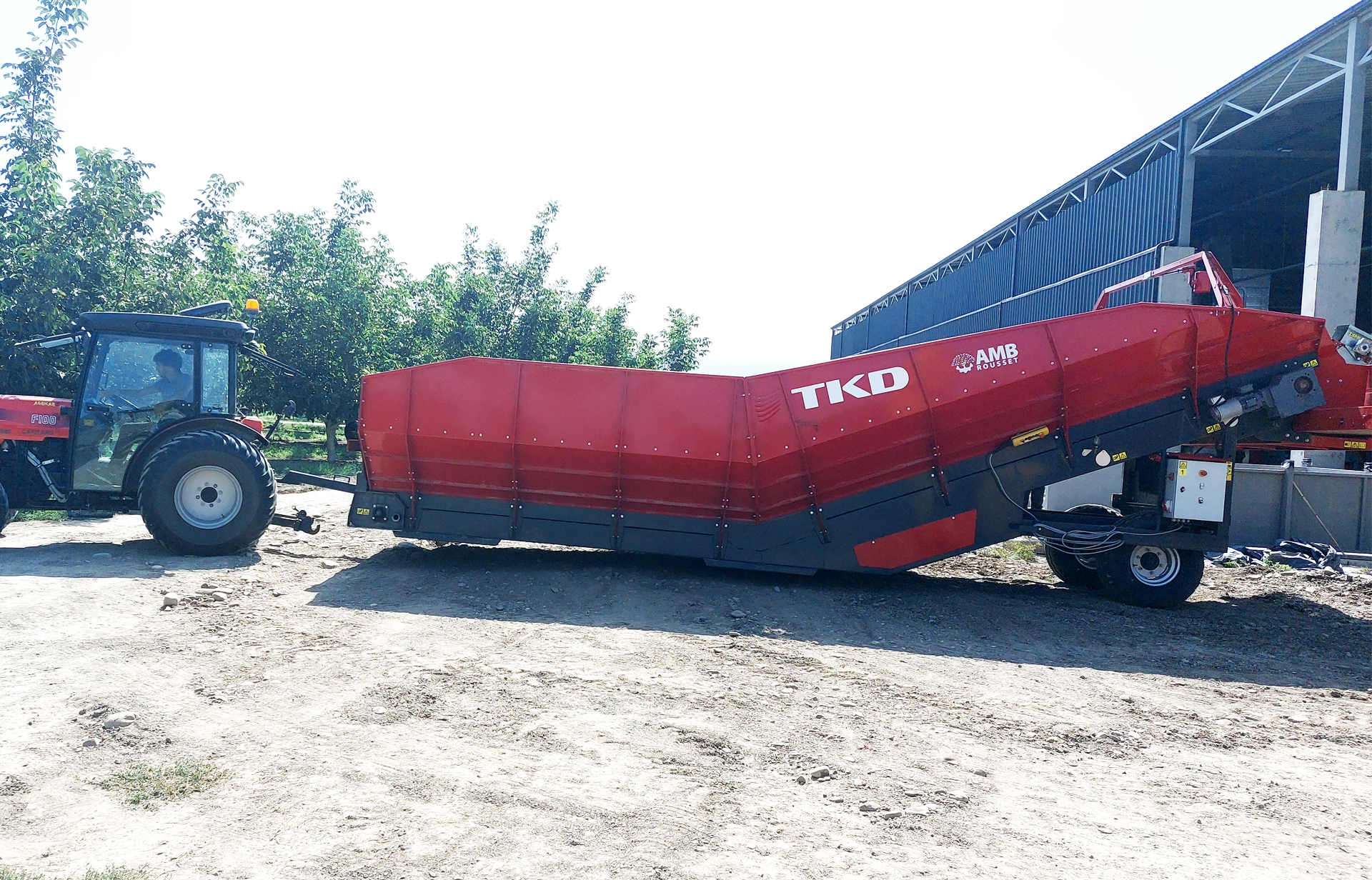

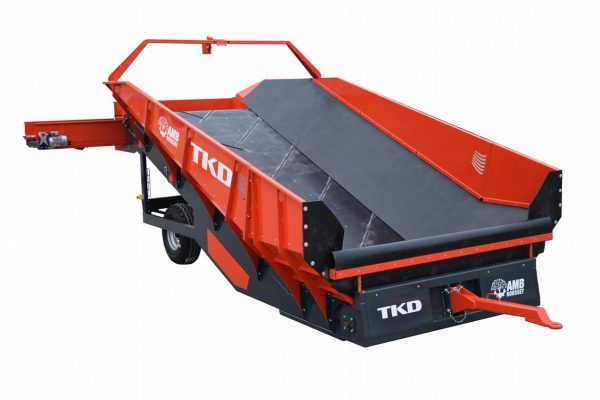

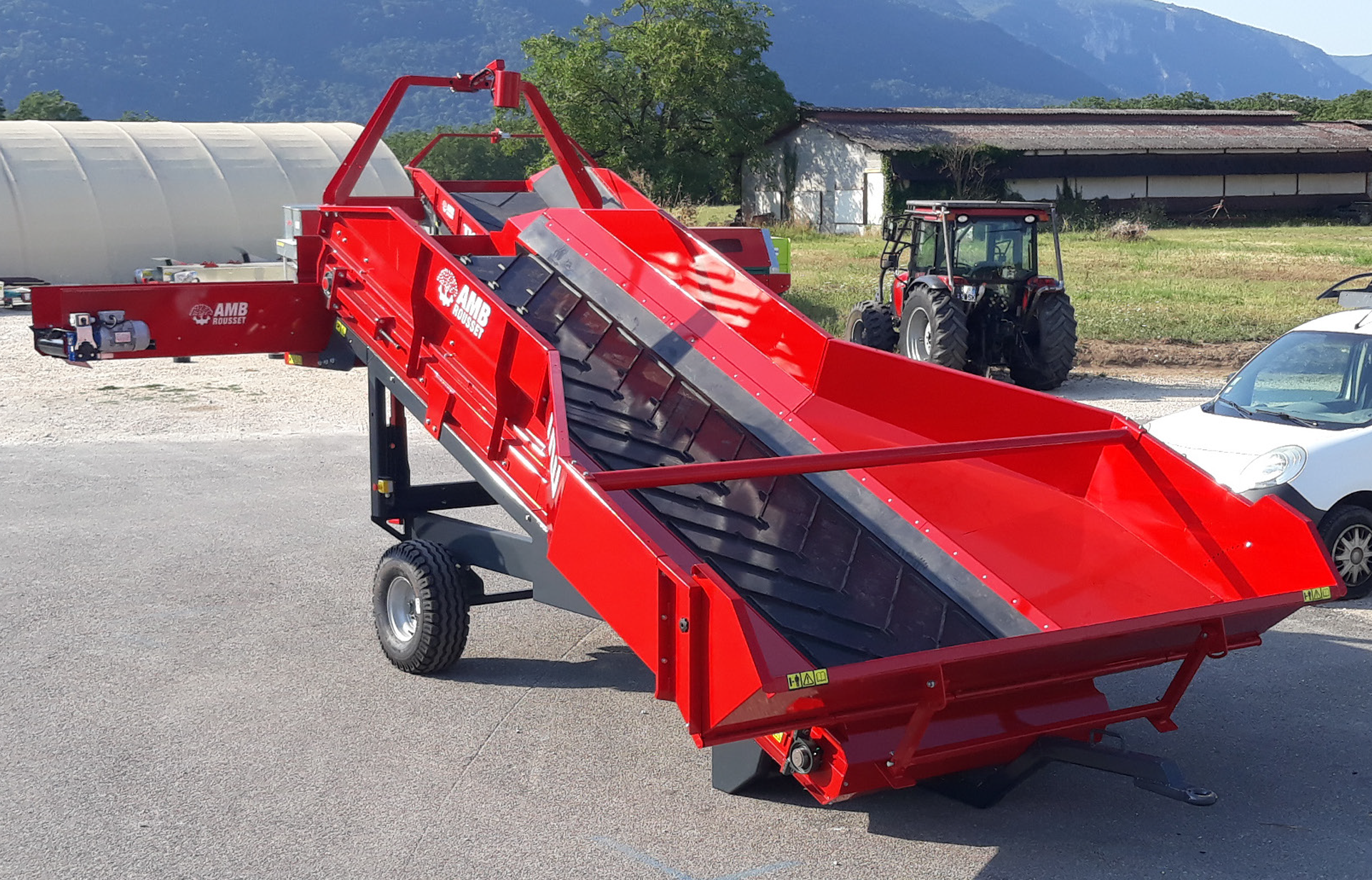

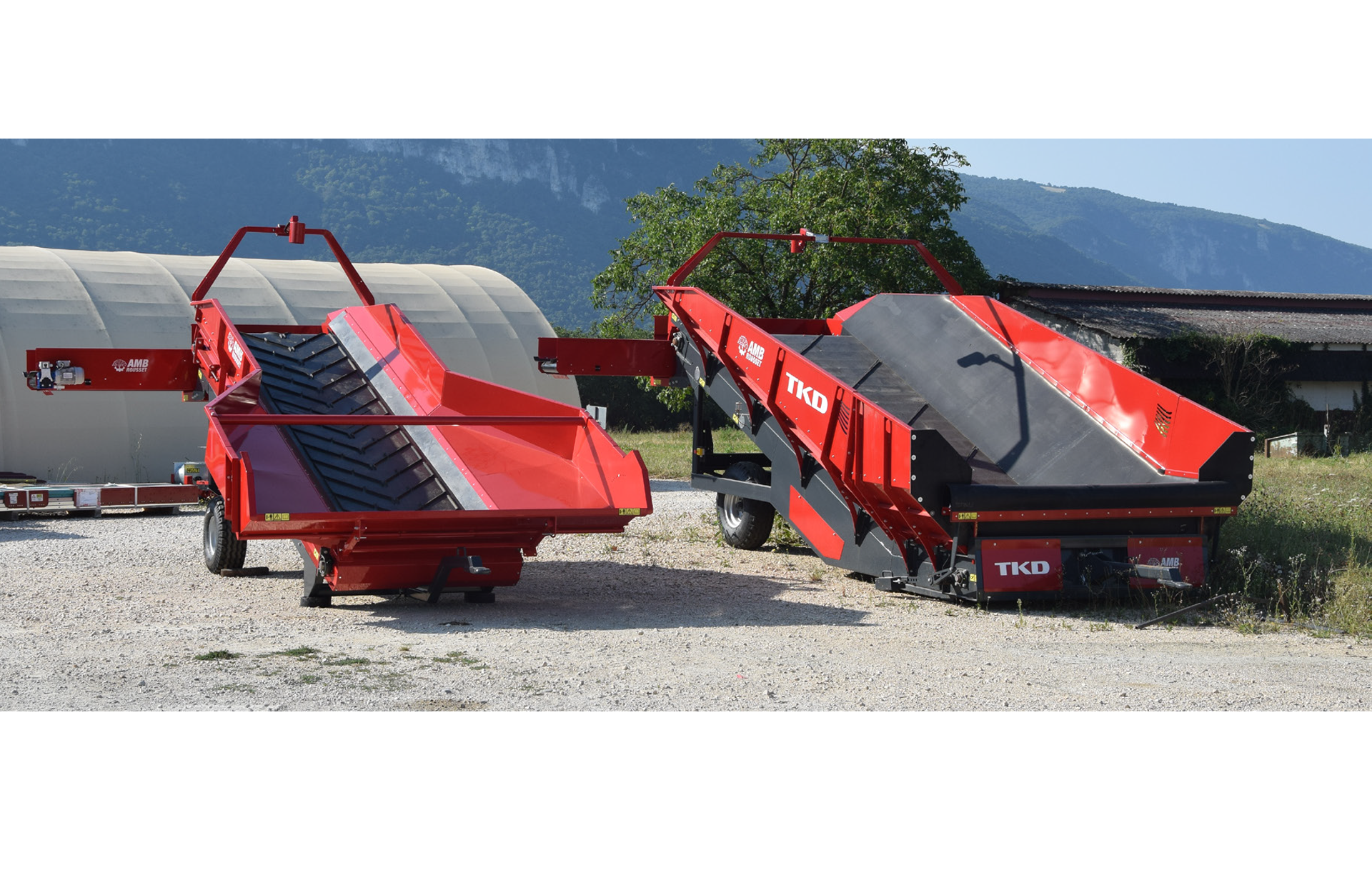

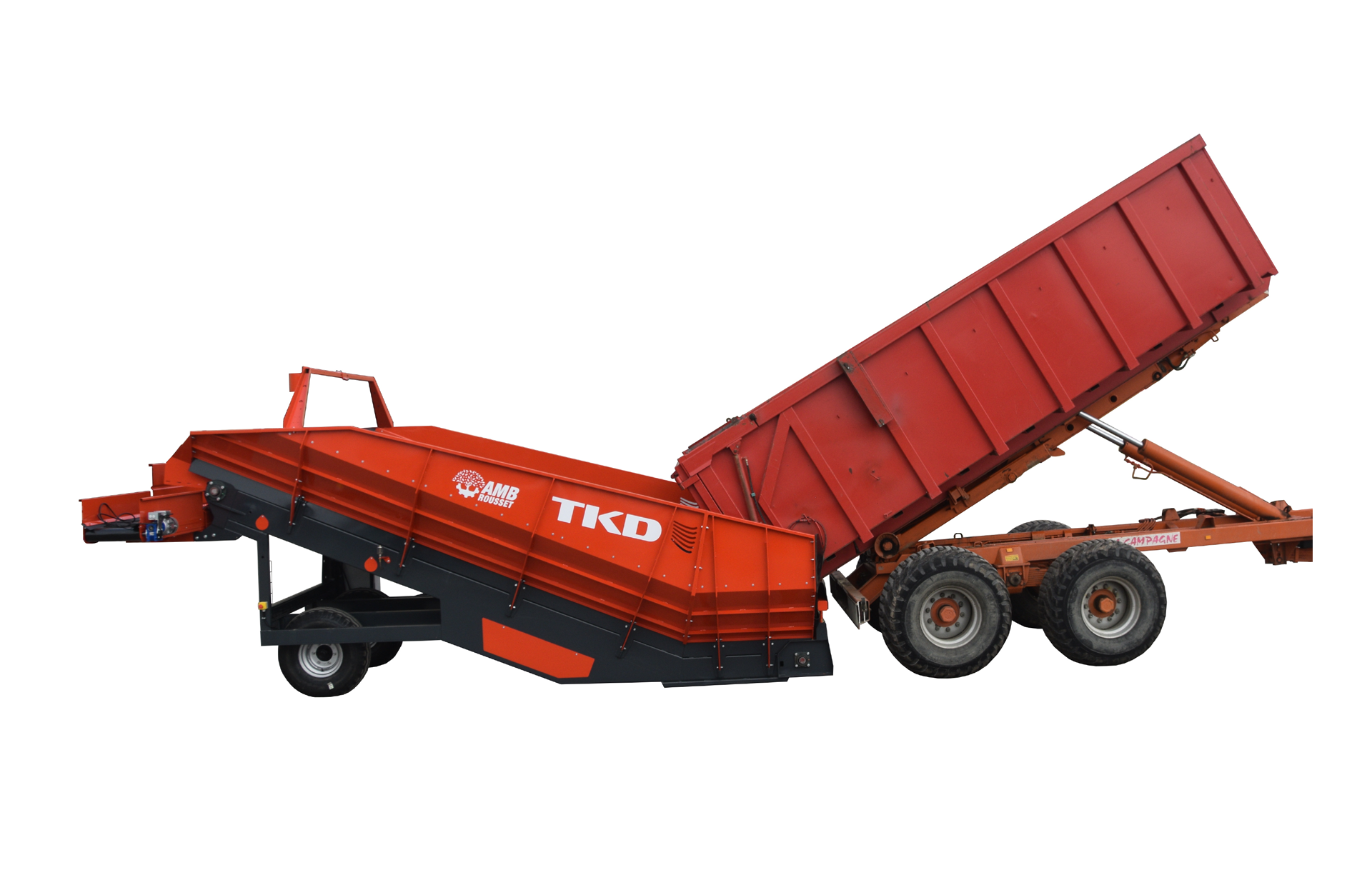

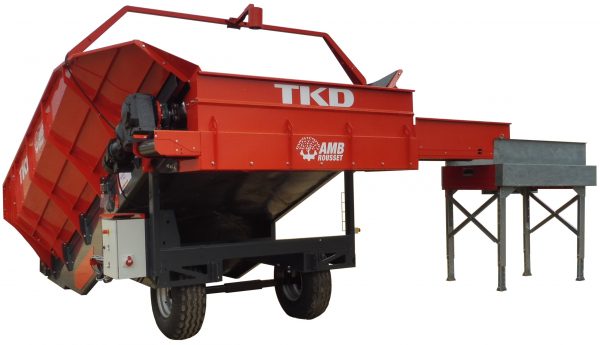

Large receiving hopper in trailer type with self-unloading. Speed is regulated depending on the supplied product volume at the end of the conveyor, which is monitored by an ultrasonic sensor. Equipped with conveyor belt and unloading conveyor.
Crop compatibility:
Walnut Processing
Almond Processing
Hazelnut Processing
| Available volumes | 6 / 17.5 m³ / 21 m³ and 24.5 m³ 6 / 17.5 m³ / 21 m³ and 24.5 m³ |
|---|---|
| Conveyor belt width | 2000 mm |
| Width of cross discharge conveyor | Flow regulation by electronic variator and ultrasonic product height sensor |
| Motor | 2.2 kW |
| Nut processing capacity: | from 0.5 t/h to 15 t/h |
| Supplied as a removable trailer on wheels | |
| Discharge width | 3300 mm |
| Cross conveyor discharge height | 1550 mm |
| Hopper belt conveyor | DG200 = 14 m² with electronic variator (Ref.: TKD0001) |
| Ultrasonic height and flow sensor | (Ref.: 1000455) |
| Cross discharge conveyor width | 450 mm (Ref.: TKD0003) |
| Semi-panel deflector | length 1.20 m = 3.5 m² additional (Ref.: TKD0002) |
