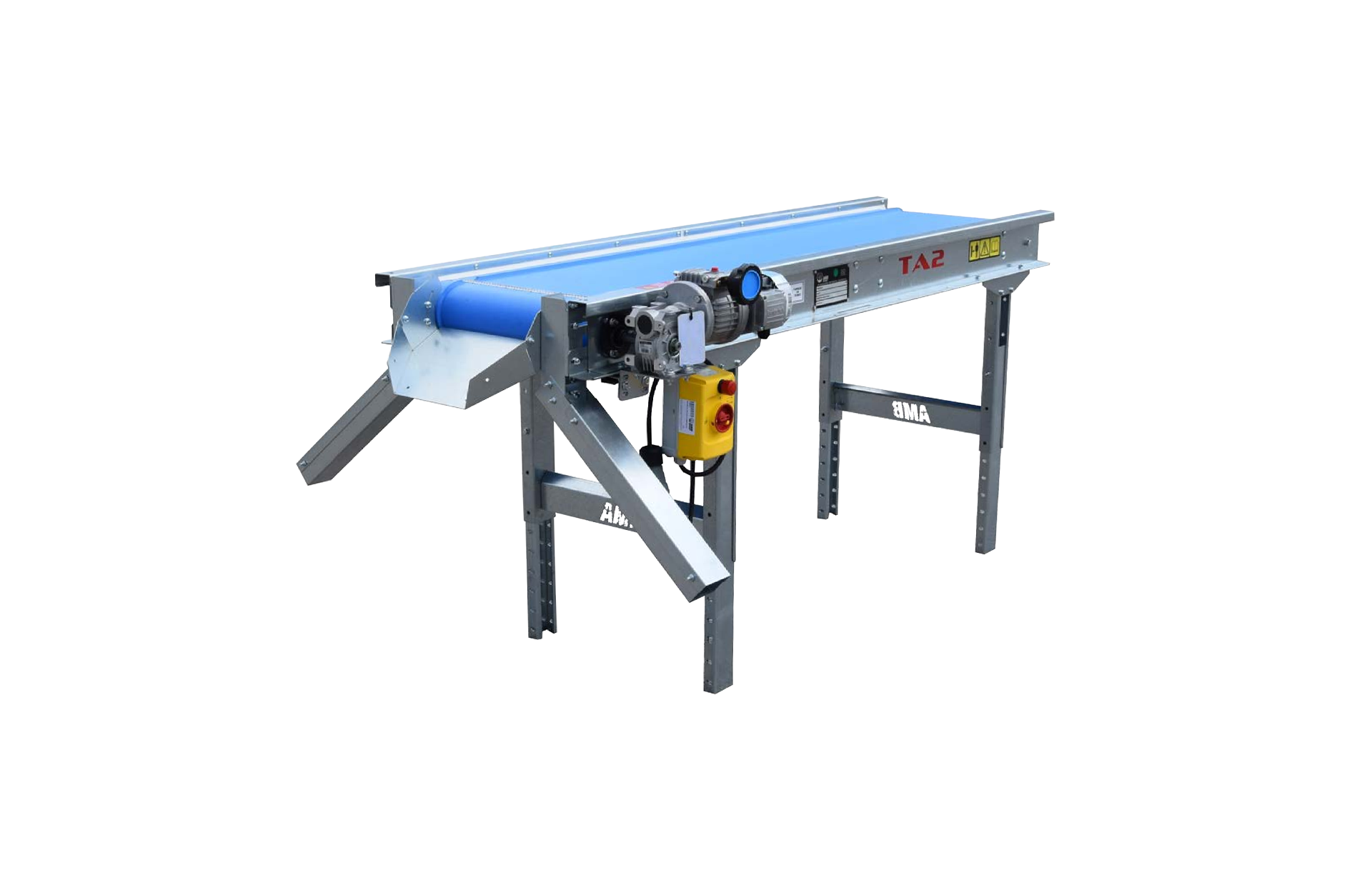

This sorting table is intended for manual fruit sorting.
For nuts, it’s used to separate the good from the bad nuts. It’s also used to separate the shells from the kernels after breaking.
The height of the table and the speed are adjustable in order to offer you maximum working comfort.
Crop compatibility:
Walnut Processing
Almond Processing
Hazelnut Processing
| Product code TA1 / TA10001 | |
|---|---|
| Length | 2 m |
| Width | 500 mm |
| Motorization | Three-phase geared motor 0.18 kW 7.4 at 40 RPM |
| Chassis | Galvanized-bolted structure in bent sheet metal |
| Conveyor belt | Food grade PVC band with notched guide profile; Tensioner with cast iron bearing, grease nipple and through shaft |
| Rollers maintenance | PVC rolls diameter 115; Return roller with fixed axis greased for life |
| Product output | Tilting outlet chute |
| Corridors | 2 waste lanes 75 mm wide; height 50mm |
| Feet | Adjustable galvanized feet for height from floor to mat 720 to 1070 mm |
| Weight | 120 kg |
| Product code TA1 / TA10002 | |
| Length | 3 m |
| Width | 500 mm |
| Motorization | Three-phase geared motor 0.18 kW 7.4 at 40 RPM |
| Chassis | Galvanized-bolted structure in bent sheet metal |
| Conveyor belt | Food grade PVC band with notched guide profile; Tensioner with cast iron bearing, grease nipple and through shaft |
| Rollers maintenance | PVC rolls diameter 115; Return roller with fixed axis greased for life |
| Product output | Tilting outlet chute |
| Corridors | 2 waste lanes 75 mm wide; height 50mm |
| Feet | Adjustable galvanized feet for height from floor to mat 720 to 1070 mm |
| Weight | 120 kg |
| Product code TA2 / TA20001 | |
| Length | 2 m |
| Width | 500 mm |
| Motorization | Three-phase geared motor 0.18 kW 5.6 at 30 RPM |
| Chassis | Galvanized-bolted structure in bent sheet metal |
| Conveyor belt | Food blue PU tape with smooth guide profile; Tensioner with permanently greased sheet metal bearing and through shaft |
| Rollers maintenance | PVC rolls diameter 115; Return roller with fixed axis greased for life |
| Product output | Tilting outlet chute |
| Corridors | 2 waste channels 60 mm wide 8 mm high (per guide profile) |
| Waste outlet | 2 side chutes with fixed waste with cover |
| Feet | Galvanized adjustable foot for a height from the floor to the 776 to 1076 mm |
| Weight | 150 kg |
| Product code TA2 / TA20002 | |
| Length | 3 m |
| Width | 500 mm |
| Motorization | Three-phase geared motor 0.18 kW 5.6 at 30 RPM |
| Chassis | Galvanized-bolted structure in bent sheet metal |
| Conveyor belt | Food blue PU tape with smooth guide profile; Tensioner with permanently greased sheet metal bearing and through shaft |
| Corridors | 2 waste channels 60 mm wide 8 mm high (per guide profile) |
| Waste outlet | 2 side chutes with fixed waste with cover |
| Feet | Galvanized adjustable foot for a height from the floor to the 776 to 1076 mm |
| Weight | 150 kg |
