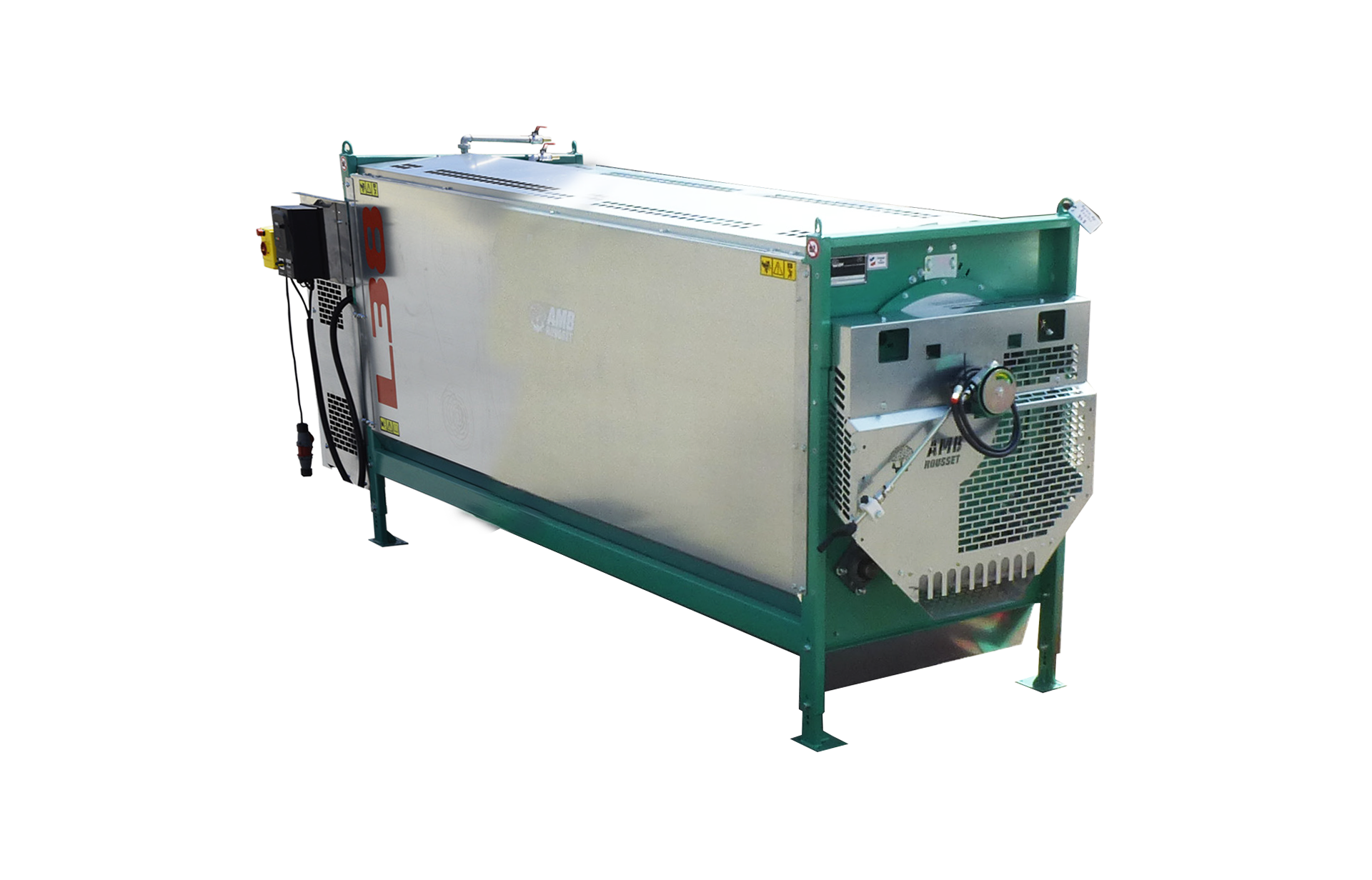

This is the fastest and most versatile of our washers. It is designed to remove the green skin from nuts (husk) and wash them very quickly. Equipped with a motorized inner drum that rotates in the opposite direction to the outer drum, it can, thanks to the speed variation and the nature of the coating, act with force or softness continuously. Its robust chassis and components allow for intensive use. It is easy to maintain and spare parts are readily available. The control is done by varying the filling rate and the rotation speeds. Driving requires some experience.
Crop compatibility:
Walnut Processing
Almond Processing
Hazelnut Processing
| Performance | Raw walnuts: 6-7 m³/h. Washed walnuts: 5,3 m³/h. Fresh walnuts: 4 t/h. Dry walnuts: 2 t/h. |
|---|---|
| Motorization | 2,2kW + 3kW - 380v |
| Transmission | External Rotor by 2 coaxial gearmotors with belt. Internal Rotor by 1 coaxial gearmotor with belt. |
| Water / Watering | Recommended water flow: 5m3/h. 2 Low pressure water ramps inside and outside. |
| Driving position | The control is carried out by varying the filling rate and the speed of rotation of the inner drum by means of a speed variator. Reverse rotor direction possible. |
| Outer drum | Ø 800mm mechanic-welded, laser/square 12/12 |
| Inner drum | Scaling plates mounted on a rotor. Brush plates on the 2 vertical faces of the rotor. Beater brush at the outlet. |
| Unstuck brush | With helical turns |
| Working | Continuous |
| Foots | Adjustable 0 to 130mm in steps of 10mm. Initial adjustment of input foot 110mm - Initial adjustment of output foot 90mm. Factory outlet slope ≈1% (20mm offset between adjustable entry and exit feet). |
| Options | Brush drum, Speed variator on the drum, Scaling rotor with electric variator, Motorized door, Pre-washer type outlet chute (without hole) (replacing washer type), No rotor to put in pre-washer (replacing the shelling rotor), Slag water re-injection pump, Recycling bin for washing water, High pressure outlet ramp, Side and central deflectors, Extensions (250mm, 500mm, 750mm or 1000mm), Special drum for smaller nuts (hazelnuts, almonds, chestnuts) to limit scratching of the product by sheathing the bars |
| Security | Comply with EC standards |
| Dimensions | Length - 3,80m; Width - 1,08m; Height - 1,62 m |
| Weight | 1 540 kg |
